Pre-coated galvanised steels

Pre-coated and galvanised steels

Pre-coated coils, wires and sheets – EN 10169-1
Standard colours: dark brown, white grey, Siena red, ral 7035, 9002, 9010, 1015, 3009, 6005, 6021, 7016, 9001, 9016, 5010, 9006, 3000, 3003; C02, C10, C24, C26, C30.  Other colours available on request

Standard sizes:
Thickness: from 0.25 to 1.80 mm
Width: max. 1500 mm
Zinc weight: 150g/m2

Supports: DX51D, S250, S280, Antifluting

Application: Industrial and civil construction



Galvanised flattened laminates

EN 10142: for cold forming and moulding
EN 10147: for structural applications

Bending and profiling: DX51D + GZ
Moulding: DX52D +GZ
Deep moulding: DX53D \ DX54D \ DX56D + GZ
Structural applications: S220 \ S250 G \ S280 \ S320 \ S350\ S550 + GZ

Standard sizes:
Thickness: from 0.25 to 3.00 mm
Width: from 10 mm to 1500 mm
Zinc coating: from 70 up to 450 g/m2

Application: Industrial and civil construction

lamiera_zincata

Related sections

acciaio_nastri_preverniciati

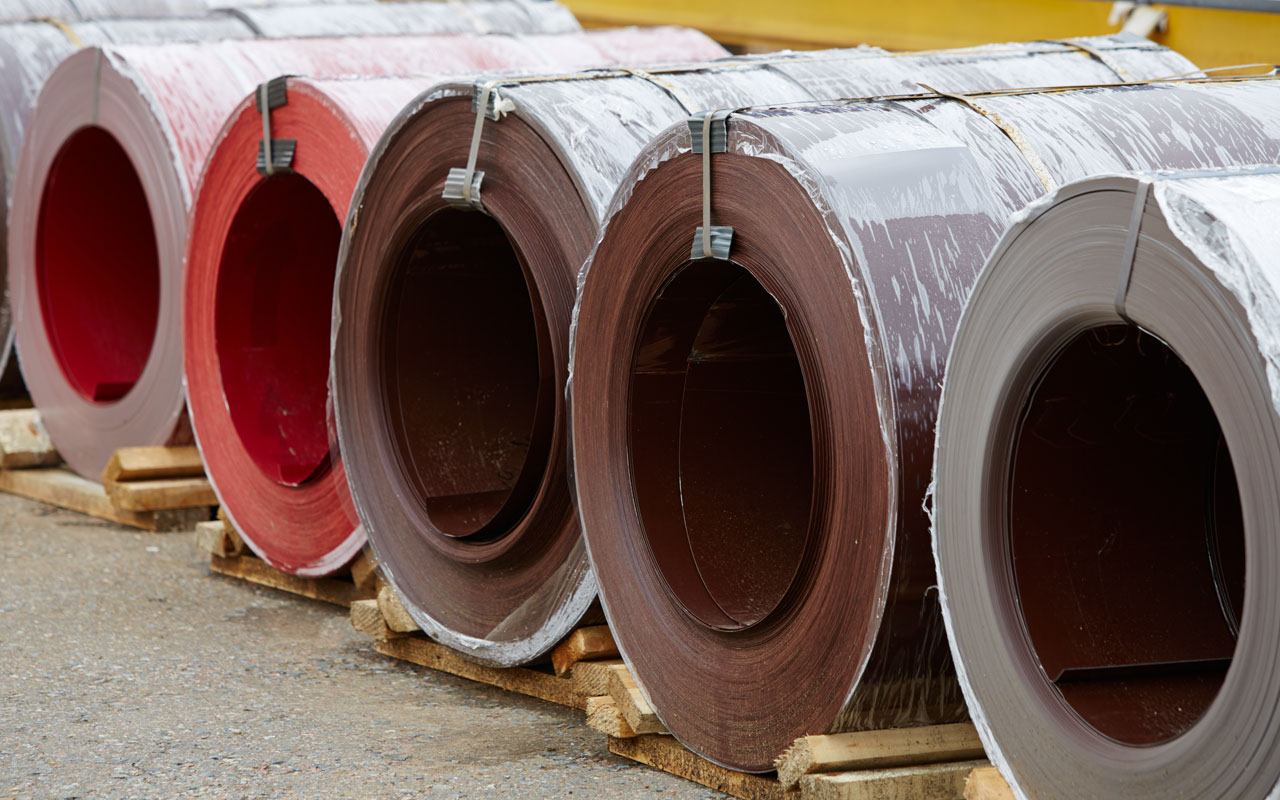

Pre-coated steels

These steels consist of a metal support and an organic coating applied continuously in liquid and powdered form. They have the advantage of combining the aesthetics of colour with an additional barrier against corrosion.
The most commons supports are:

  • Galvanised steel
  • Cold-rolled steel
  • Aluminium
  • Stainless steel
  • Zinc and Titanium

Galvanised steels

Cold-rolled carbon steel coated in continuous mode with hot process with a zinc alloy.
Because of its versatility, it is used in all civil and industrial applications in which there is the need to combine strength and protection.
